Product Performance Features:
※ Reliable 24-bit digital audio processing capability delivers exceptional personal monitor mixes for every performance.

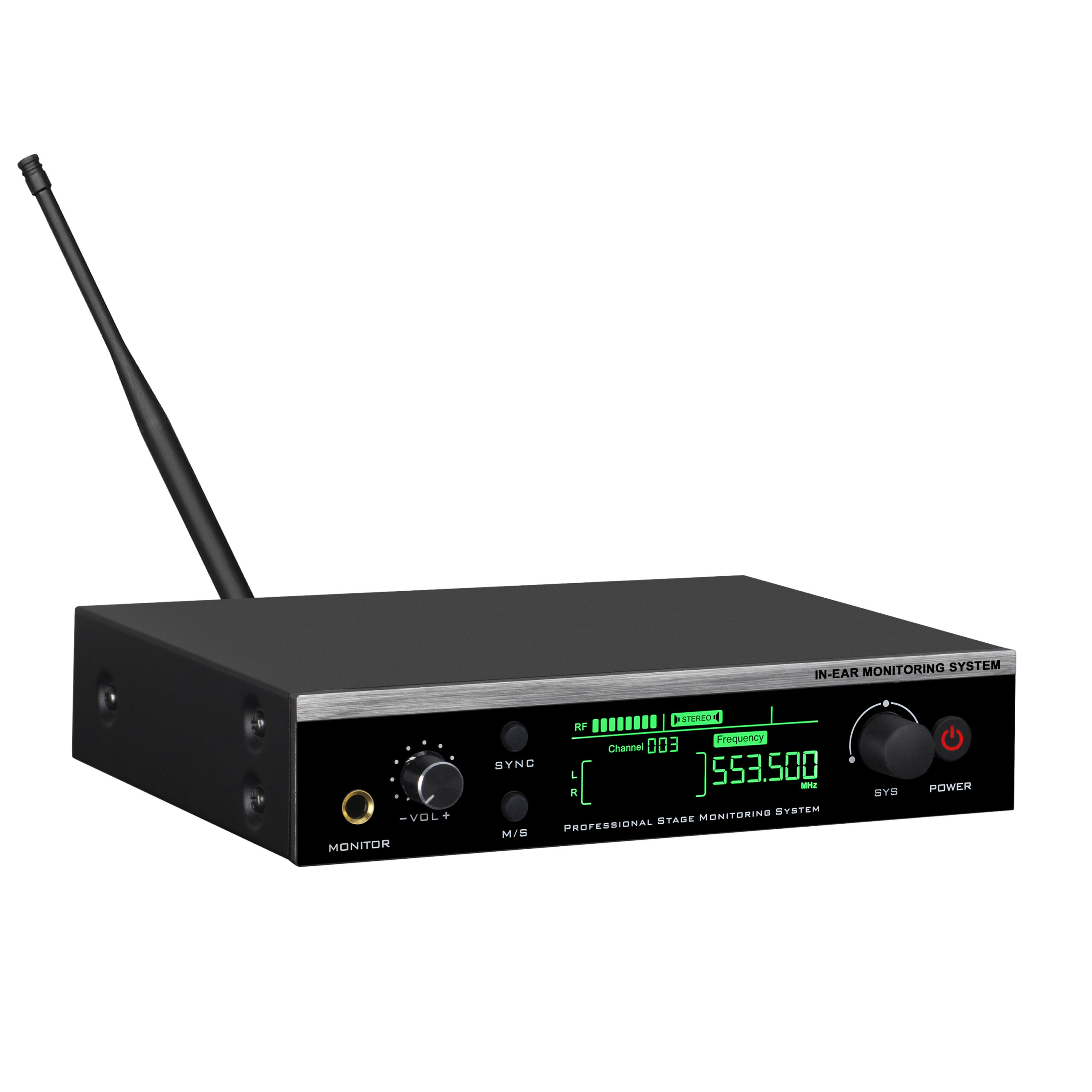

※ Transmit one audio channel to a waistpack receiver with a maximum range of 60 meters, while digital audio technology reliably ensures clear sound quality, free from noise or signal loss issues.The rugged and durable semi-rack-mounted transmitter features a simple front panel control function.
※ LCD display with wide viewing angle and high clarity, providing an at-a-glance view of all operational statuses.

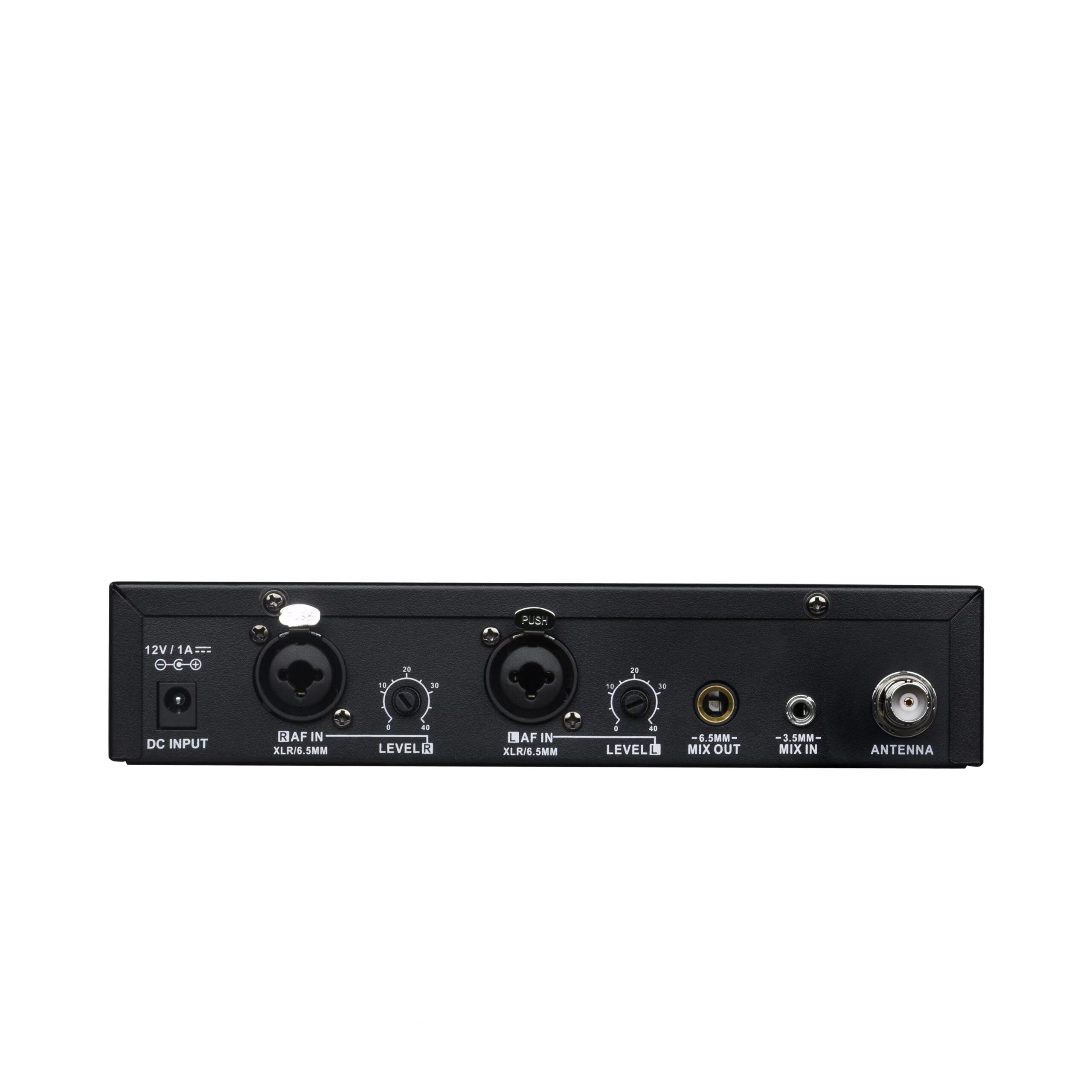

※ Balanced input and loop output on the rear panel offer comprehensive connectivity for audio sources and other units.
Product Parameter Specifications:
Transmitter frequency range ………………….553.5 – 578.25 MHz
Audio input………………….Max input 1.4V
Power supply ………………………..12-14 V DC
Consumption…………………….12V 140 mA
Transmit power…………………50mW
Reception frequency range …………………. 553.5 – 578.25 MHz
Receiver sensitivity……………….<-95dBm
Battery……………………….. AA 1.5v x2
Frequency response ………………….50 – 20,000 Hz
Audio output power………………….150mW (1kHz @ <1% distortion)
Consumption…………………….3V 140 mA
System distortion ………………………..< 0.1 %
Signal-to-noise ratio………………………≥ 95 dB (A)
Frequency range ………………….. 553.5 – 578.25 MHz
Bandwidth…………………………250KHz
Dynamic range ………………….. >90 dB (A)
Audio sampling…………………..24 bit/48 kHz
Audio response time…………….7.2 ms
Modulation method…………………..GFSK
Frequency response…………………..50 – 20,000 Hz
Use distance ………………….60 meter
