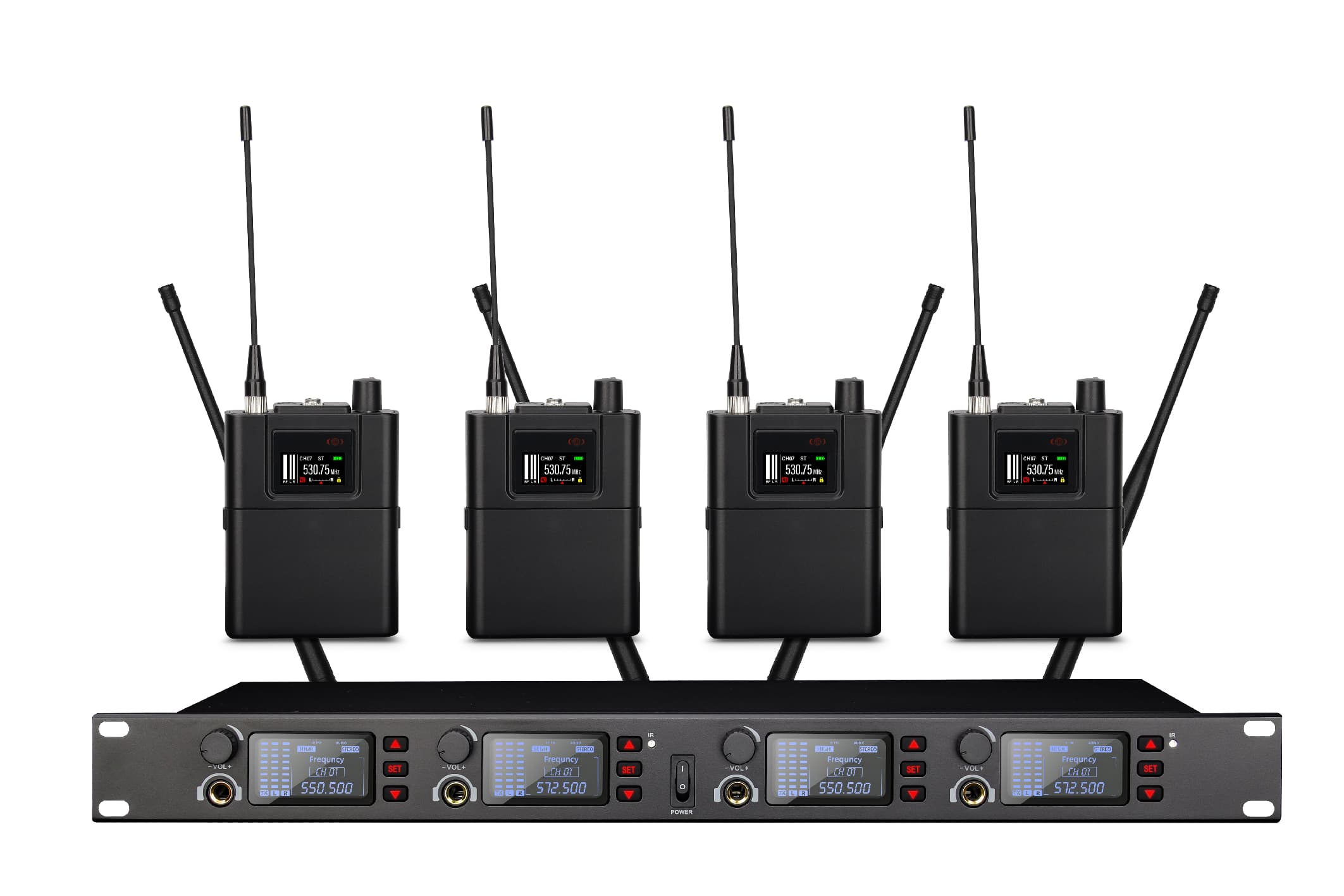

PSM-400+9100R Mono Wireless In-Ear Monitor System Four Channel
PSM-400+9100R Mono Wireless In-Ear Monitor System Four Channel - 图片 2

PSM-400+9100R Mono Wireless In-Ear Monitor System Four Channel

Functional Introduction
1. Professional wireless in-ear monitoring system specially designed for stage performances and audio broadcasting applications.
2. Adopts UHF frequency band with excellent anti-interference performance for stable operation.
3. Features a 30MHz frequency bandwidth with 100 preset switchable frequency points for flexible frequency adjustment.
4. Supports switchable stereo and mono sound modes to meet diverse audio monitoring needs.
5. Equipped with a 2.4-inch high-definition IPS TFT color screen for multi-functional clear data display.
6. Built with high-stability digital circuits and an intelligent detection mute control function, which effectively blocks external complex RF noise and environmental interference.
分类：

Transmitter Specifications

  1. Chassis Form Factor: Standard EIA Half-U rack size
  2. Channel Configuration: Single channel
  3. Frequency Stability: ±0.005%
  4. Carrier Frequency Band: UHF 550 – 960 MHz
  5. Modulation Type: Digital modulation
  6. RF Output Power: 10 mW – 100 mW
  7. Effective Operating Range: 80 meters in open unobstructed space
  8. Oscillation Scheme: PLL phase-locked loop frequency synthesis
  9. Spurious Harmonic Emission: ＜ -40 dBm
  10. Maximum Frequency Deviation: ±1500 kHz
  11. Frequency Bandwidth: 30 MHz
  12. Overall Signal-to-Noise Ratio: ＞ 109 dB
  13. Total Harmonic Distortion (THD): ＜ 0.4% @ 1 kHz
  14. Overall Frequency Response: 20 Hz～20 kHz ± 3 dB
  15. Audio Input: Combo jack supporting XLR & 6.35 mm audio connector
  16. Audio Output: 2 × unbalanced 6.35 mm audio jacks

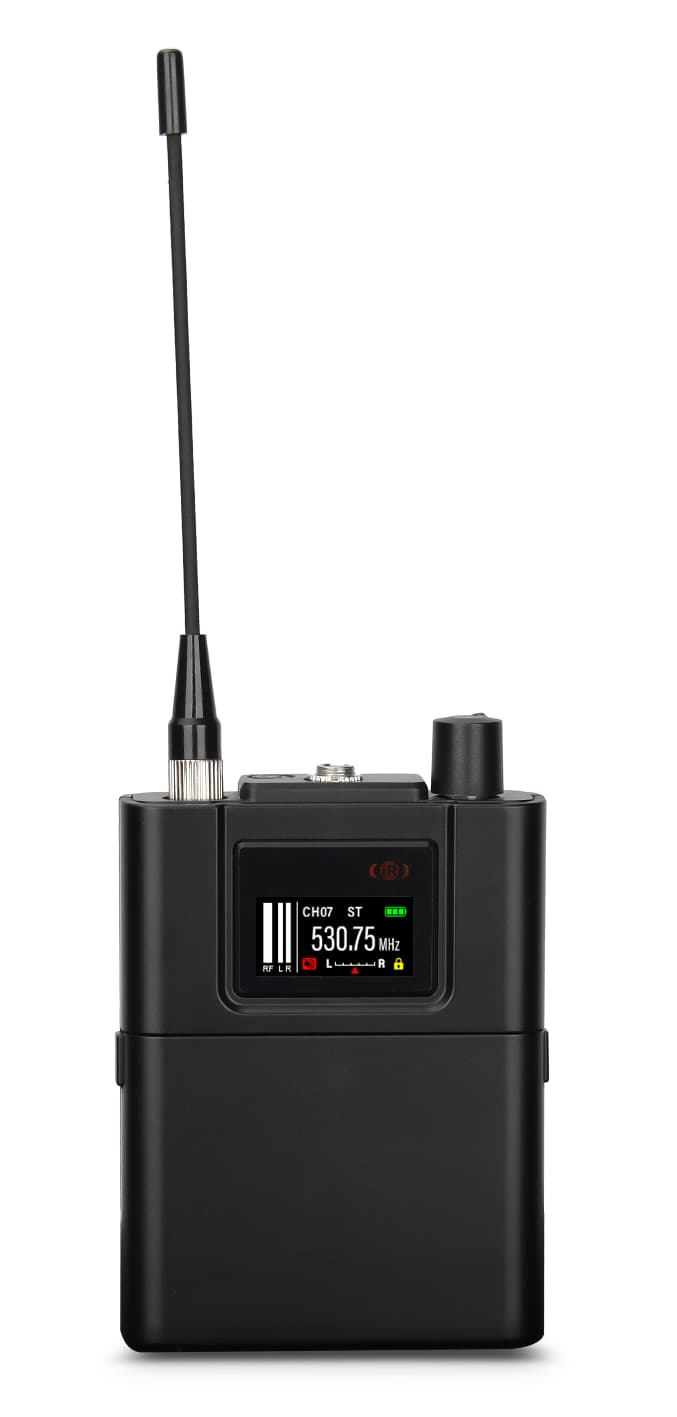

Receiver Specifications

  1. Channel Configuration: Single channel
  2. Frequency Stability: ±0.005%, digital frequency control
  3. Carrier Frequency Band: UHF 550 – 950 MHz
  4. Modulation Type: Digital stereo modulation
  5. Effective Operating Range: 80 meters in open unobstructed space
  6. Oscillation Scheme: Digital frequency synthesis
    Spurious Harmonic Emission: ＜ -40 dBm
  7. Receiving Sensitivity: -90 dBm
  8. Frequency Bandwidth: 30 MHz
  9. Maximum Frequency Deviation: ±1500 kHz
  10. Overall Signal-to-Noise Ratio: ＞ 109 dB
  11. Total Harmonic Distortion (THD): ＜ 0.4% @ 1 kHz
  12. Overall Frequency Response: 20 Hz～20 kHz ± 3 dB
  13. Stereo Separation: ≥ 70 dB @ 1 kHzAudio Input: Combo jack supporting XLR & 6.35 mm audio connector
    Audio Output: 2 × unbalanced 6.35 mm audio jacks
  14. Output Port: 6.35 mm stereo headphone jack
  15. Output Power: 10 mW – 100 mW
  16. Bodypack Receiver Power Source: 4.2 V lithium battery
  17. Typical Current Consumption of Bodypack Receiver: 250 mA
  18. Battery Working Duration of Bodypack Receiver: Approximately 7 hours
